As an important component of the motor, the design, manufacturing, and maintenance of the Dalian motor casing have a significant impact on the performance, lifespan, and safety of the motor. By selecting materials reasonably, optimizing structural design, adopting advanced manufacturing processes, and strengthening maintenance, the quality and performance of the motor casing can be effectively improved, ensuring the normal operation and long-term use of the motor. With the continuous development of motor technology, the design and manufacturing of motor housings will also continue to innovate, providing strong support for the performance improvement and wide application of motors.
Industrial motors usually need to operate under high loads and harsh environments, so their motor housings need to have high mechanical strength and protective capabilities. Household appliance motors usually have high requirements for weight and noise, so their motor housings are often made of aluminum alloy or plastic materials. Automobile motors need to operate in high temperature and high vibration environments, so their motor housings need to have good heat resistance and vibration resistance.
What are the specific differences in performance and cost of Dalian motor shells made of different materials?

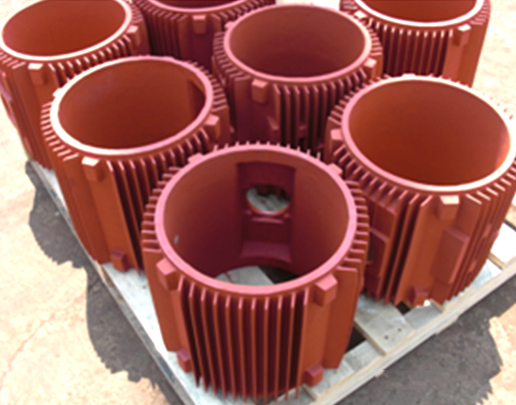

Cast iron motor casing
performance
Strength and Wear Resistance: Cast iron has high strength and good wear resistance, and can withstand large mechanical stresses and impact forces. It is suitable for high load, high-speed motors, such as large industrial motors.
Shock absorption: Excellent shock absorption performance can effectively reduce the vibration and noise generated during motor operation, providing a stable operating environment for the motor.
Heat dissipation: The heat dissipation performance is average, and the thermal conductivity of cast iron is relatively low. However, due to its thicker wall thickness, it can store a certain amount of heat and alleviate the heat dissipation problem of the motor to a certain extent.
Corrosion resistance: It has good corrosion resistance in general environments, but it is prone to rusting in humid or corrosive gas environments and requires anti-corrosion treatment.
Cost: The raw material cost is relatively low, and the casting process is mature. The cost of production equipment and molds is also not high, so the overall manufacturing cost is relatively economical.
Aluminum alloy motor casing
performance
Strength and weight: Although the strength of aluminum alloy is lower than that of cast iron, its specific strength (strength to weight ratio) is higher. While ensuring the strength of the motor casing, it can effectively reduce the weight of the motor, which is crucial for some applications with strict weight requirements, such as electric vehicles, aerospace and other fields.
Heat dissipation: With good thermal conductivity, it can quickly dissipate the heat generated inside the motor, improve the heat dissipation efficiency of the motor, reduce the operating temperature of the motor, and thus extend the service life of the motor.
Corrosion resistance: It has good corrosion resistance and is easy to form a dense oxide film in the air, which can effectively prevent further corrosion. It is suitable for corrosive environments such as humidity, acid and alkali.
Cost: Aluminum alloy materials have relatively high costs, but their processing performance is good. Efficient molding processes such as die-casting and extrusion can be used, resulting in high production efficiency and reducing processing costs to a certain extent. However, the overall cost is still higher than that of cast iron motor casings.
Steel motor casing
performance
Strength and toughness: Steel has high strength and toughness, and can withstand large external forces and impact forces. It is suitable for some motors with special requirements, such as high-voltage motors, lifting motors, etc., which need to withstand significant mechanical stress during operation.
Magnetic permeability: Some special steels also have good magnetic permeability, which can be used in motors with high magnetic field requirements, helping to improve the performance of the motor.
Heat dissipation: The thermal conductivity of steel is similar to that of cast iron, and its heat dissipation performance is average. However, the heat dissipation effect can be improved by adding heat dissipation structures or adopting forced cooling measures.
Corrosion resistance: Ordinary steel is prone to rusting in humid environments and has poor corrosion resistance, requiring anti-corrosion treatments such as galvanizing and painting. Although stainless steel material has good corrosion resistance, its cost is relatively high.
Cost: The cost of ordinary steel is relatively low, but for some steel with special performance requirements, such as high-strength alloy steel, stainless steel, etc., the cost will significantly increase. In addition, the processing of steel is difficult and requires special processing techniques and equipment, which also increases manufacturing costs.
Engineering plastic motor casing
performance
Insulation performance: With excellent insulation performance, it can effectively isolate the electrical components inside the motor, prevent leakage and short circuit, and improve the safety and reliability of the motor.
Corrosion resistance: It has good resistance to chemicals such as acids, alkalis, and salts, and is suitable for some harsh chemical environments.
Lightweight: Lightweight, easy to handle and install, while also reducing the overall weight of the motor, which has advantages for some portable or weight sensitive motor products.
Mechanical strength: The mechanical strength is relatively low, not as good as metal motor shells, and is easily damaged when subjected to large external forces or impacts. Therefore, it is generally suitable for small, low-power motors.
Heat dissipation: The heat dissipation performance is poor, and the thermal conductivity of plastic is low, which is not conducive to the dissipation of motor heat. Special heat dissipation design is needed to compensate, such as adding heat dissipation fins or using plastic materials with good heat dissipation performance.
Cost: The cost of raw materials is generally low, and the processing technology is simple with fast molding speed, which can greatly reduce production costs. Meanwhile, due to its light weight, transportation costs are relatively low.
Casting is the main process for manufacturing cast iron and aluminum alloy motor casings. By pouring molten metal into the mold and cooling it, the shape of the motor casing is formed. The casting process can produce motor housings with complex shapes and stable structures. Stamping technology is suitable for manufacturing thin-walled motor housings, such as aluminum alloy motor housings. Stamping metal sheets into the desired shape using a stamping machine, followed by welding and machining.
Enclosed motor casing: Enclosed motor casing can effectively prevent external substances such as dust and moisture from entering the interior of the motor, making it suitable for harsh environments. Its disadvantage is poor heat dissipation performance, usually requiring additional heat dissipation devices. Open motor housing: The open motor housing allows for free air circulation and has good heat dissipation performance, making it suitable for environments with relatively clean conditions. However, the open motor housing has weak protection capabilities for the interior of the motor and is easily affected by external pollutants.
